Description
| Type (Cooling) |

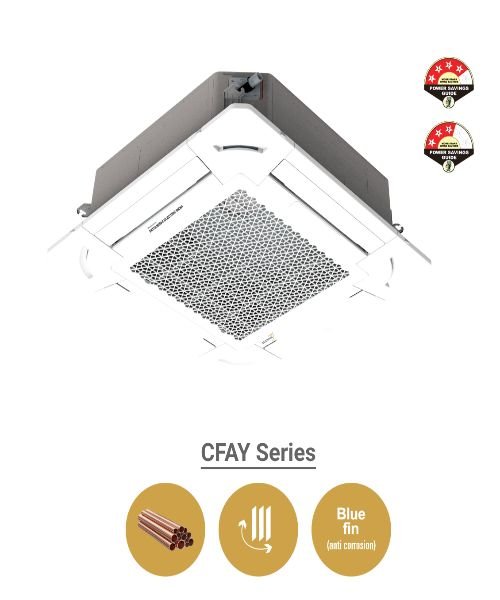

| Indoor Unit |
| CFAY-24EV4G |
| Outdoor Unit |
| CFBY-24EV4G |
| Performance Parameters |
| Capacity (Tr) |
1.8 Ton |
| Capacity Full Load |
6200 W |
| Power Full Load |
1745 W |
| Star Rating – As Per BEE |
4 Star  |
| ISEER |
4.6 |
| Power Supply (Voltage) |
230/1PH/50Hz V/Phase/Freq |
| Capacity (Rated Min-Max) |
3.7 (1.4-4.1)kW |
| Supply From |
Outdoor Driven |
| Fin colour |
Blue |
| Indoor Air Flow |
1280 (High) CMH |
| Indoor Noise(H/M/L) |
45/43/41 (dBA) |
| Compressor, Refrigerant & Ambient Operations |
| Outdoor Noise Level Rated |
58 (dBA) |
| Fin colour |
Blue |
| Refrigerant |
R32  |
| Ambient Operating Range |
48 °C |
| Dimensions & Weight |
| IDU Dimension |
Net Dim(DxWxH) |
845x845x245 |
mm |
| Packing Dim(DxWxH) |
950x950x328 |
mm |
| Net / Gross Weight |
24/30.5 |
kg |
| ODU Dimension |
Net Dim(DxWxH) |
281x781x555 |
mm |
| Packing Dim(DxWxH) |
395x925x605 |
mm |
| Net / Gross Weight |
28/30 |
kg |
| Front Grill |
Net Dim(DxWxH) |
950x950x52 |
mm |
| Packing Dim(DxWxH) |
1010x1034x118 |
mm |
| Net / Gross Weight |
5.5/8.0 |
kg |
| Connecting Pipe |
Liquid and Gas Side Dia |
1/4”,5/8” |
Dia |
| Maximum Length |
25 |
m |
| Maximum Elevation |
15 |
m |
*Refrigerant piping length (one-way): 7.5m(25ft)
*Rating conditions Cooling – Indoor: 27°C(80F)DB, 19°C(66F)WB, Outdoor: 35°C(95F)DB
