| Model name |

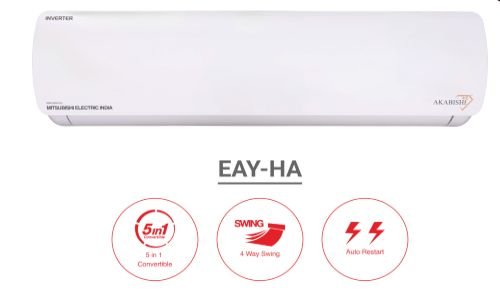

Indoor unit |
|
EAY-HA13VG-AB1-KT |
EAY-HA15VG-AB1-KT |
EAY-HA19VG-AB1-KT |
EAY-HA22VG-AB1-KT |
EAY-HA24VG-AB1-KT |
| Outdoor unit |
|
EBY-HA13VG-AB1-KT |
EBY-HA15VG-AB1-KT |
EBY-HA19VG-AB1-KT |
EBY-HA22VG-AB1-KT |
EBY-HA24VG-AB1-KT |
| Cooling Capacity |
Rated (Min-Max) |
Watt |
3350 (1560-3585) |
4600(2300-4830) |
5400 (2700-5670) |
6500 (3250-6825) |
7000 (3500-7350) |
| Star Rating |
|
3 Star |
3 Star |
3 Star |
3 Star |
3 Star |
| Energy Efficiency |
ISEER |
|
4.35 |
4.31 |
4.31 |
4.35 |
4.35 |
| Power Input |
Rated (Min-Max) |
Watt |
988 (355-1037) |
1340 (500-1407) |
1580 (585-1659) |
1897 (695-1992) |
2054 (745-2157) |
| Air Volume |
Indoor unit (Silent-Lo-Med-Hi-Turbo) |
CFM |
230-288-336-371-459 |
400-427-497-551-725 |
497-551- 647-812 |
497-551- 647-812 |
497-551- 647-812 |
| Noise Level |
Indoor unit (Silent-Lo-Med-Hi-Turbo) |
dBA |
33-37-40-46 |
38-42-45-50 |
42-46-50-52 |
42-46-50-52 |
42-46-50-52 |
| Refrigerant |
|
R32 |
R32 |
R32 |
R32 |
R32 |
| Power supply |
Voltage |
V |
230V |
230V |
230V |
230V |
230V |
| Power Input Range |
Voltage |
V |
145-285V |
145-285V |
145-285V |
145-285V |
145-285V |
| Operating Current |
Rated |
A |
4.52 |
6.13 |
7.23 |
8.68 |
9.4 |
| Indoor unit |
Net Dimensions (H x W x D) |
mm |
210x770x270 |
315x940x240 |
315x1070x235 |
315x1070x235 |
315x1070x235 |
|
Net Weight |
kg |
8 |
11.5 |
12.5 |
12.5 |
12.5 |
| Outdoor unit |
Net Dimensions (H x W x D) |
mm |
475x705x285 |
535x800x300 |
600x840x300 |
600x840x300 |
675x905x360 |
|
Net Weight |
kg |
17.3 |
20.74 |
22.7 |
25.36 |
30.8 |
| Pipe Size |
Diameter Liquid |
mm (inches) |
6.35 (1/4″) |
6.35 (1/4″) |
6.35 (1/4″) |
6.35 (1/4″) |
6.35 (1/4″) |
|
Diameter Gas |
mm (inches) |
9.52 (3/8″) |
12.7 (1/2″) |
12.7 (1/2″) |
12.7 (1/2″) |
12.7 (1/2″) |
|
Additional Refrigerant |
gm |
20/m |
25/m |
25/m |
25/m |
25/m |
|
Max.Length |
m |
15 |
15 |
15 |
15 |
15 |
|
Max.Elevation |
m |
5 |
10 |
10 |
10 |
10 |
| Ambient Operating Range |
°C |
52° |
52° |
52° |
52° |
52° |
| Control wiring (Copper) |
ODU to IDU |
Core No. x Sq.mm |
4 Core x 1.5 Sq.mm |
4 Core, x 1.5 Sq.mm, |
4 Core, x 1.5 Sq.mm, |
4 Core, x 1.5 Sq.mm, |
4 Core, x 1.5 Sq.mm, |
| Power cable (Copper) |
IDU |
Core No. x Sq.mm |
3 Core x 1.5 Sq.mm |
3 Core, x 1.5 Sq.mm, |
3 Core, x 1.5 Sq.mm, |
3 Core, x 1.5 Sq.mm, |
3 Core, x 1.5 Sq.mm, |
| ODU Breaker Size |
A |
12A |
12A |
16A |
25A |
25A |
|
|
MRP |
42300 |
45500 |
55500 |
63000 |
75000 |
