Model name |
Indoor unit |
|

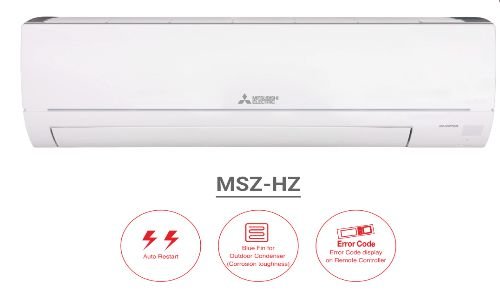

MSZ-HZ13VF |
MSZ-HZ18VF |
MSZ-HZ24VF |
|
Outdoor unit |
|
MUZ-HZ13VF |
MUZ-HZ18VF |
MUZ-HZ24VF |
| Cooling |
Cooling Capacity |
Rated (Min-Max) |
Watt |
3150 (1400-3500) |
5200 (1700-5600) |
7100 (1800-7100) |
| Power Input |
Rated |
Watt |
975 (240-1750) |
1540 (300-2210) |
2210 (290-3510) |
| Air Volume |
Indoor unit(SLo-Lo-Med-Hi-SHi) |
CFM |
127-162-208-297-459 |
332-360-441-544-639 |
360-441-544-618-696 |
| Noise Level |
Indoor unit(SLo-Lo-Med-Hi-SHi) |
dBA |
22-31-37-42-49 |
30-33-38-44-48 |
33-38-44-46-50 |
| Operating Current |
Rated |
A |
4.7 |
7 |
10 |
| Heating |
Capacity |
Rated (Min-Max) |
Watt |
3600 (1100-4100) |
5400 (1400-6500) |
8100 (1500-8500) |
| Power Input |
Rated |
Watt |
980 (270-1750) |
1260 (250-2210) |
2350 (180-3510) |
| Air Volume |
Indoor unit(SLo-Lo-Med-Hi-SHi) |
CFM |
120-155-201-283-459 |
311-371-459-554-639 |
371-459-544-618-696 |
| Noise Level |
Indoor unit(SLo-Lo-Med-Hi-SHi) |
dBA |
22-30-36-40-49 |
29-33-38-44-48 |
33-38-44-46-50 |
| Operating Current |
Rated |
A |
4.7 |
5.8 |
10.6 |
|
Star Rating |
|
3 Star |
3 Star |
3 Star |
|
Energy Efficiency |
ISEER |
|
4.54 |
4.64 |
4.53 |
|
Refrigerant |
|
R32 |
R32 |
R32 |
|
Power supply |
Voltage |
V |
230V |
230V |
230V |
|
Power Input Range |
Voltage |
V |
198-264V |
198-264V |
198-264V |
|
Indoor unit |
Net Dimensions (H x W x D) |
mm |
290x799x232 |
305x923x262 |
305x923x262 |
|
Net Weight |
kg |
8.4 |
12.1 |
12.1 |
|
Outdoor unit |
Net Dimensions (H x W x D) |
mm |
538x699x249 |
550x800x285 |
714x800x285 |
|
Net Weight |
kg |
24 |
35 |
40 |
|
Pipe Size |
Diameter Liquid |
mm (inches) |
6.35 (1/4″) |
6.35 (1/4″) |
6.35 (1/4″) |
|
Diameter Gas |
mm (inches) |
9.52 (3/8″) |
9.52 (3/8″) |
12.7 (1/2″) |
|
Additional Refrigerant |
gm per meter |
20gm per meter |
20gm per meter |
20gm per meter |
|
Max.Length |
m |
20 |
20 |
30 |
|
Max.Elevation |
m |
12 |
12 |
15 |
|
Ambient Operating Range |
Cool |
°C |
21°-46° |
21°-46° |
21°-46° |
|
Heat |
°C |
-10°-24° |
-10°-24° |
-10°-24° |
|
Control wiring (Copper) |
ODU to IDU |
Core No. x Sq.mm |
4 Core x 1sq.mm |
4 Core x 1sq.mm |
4 Core x 1sq.mm |
|
Power cable (Copper) |
ODU |
Core No. x Sq.mm |
3 Core x 1sq.mm |
3 Core x 1sq.mm |
3 Core x 2sq.mm |
|
ODU Breaker Size |
A |
10 |
10 |
16 |
|
|
|
MRP |
59500 |
77300 |
99600 |
