| Model name |

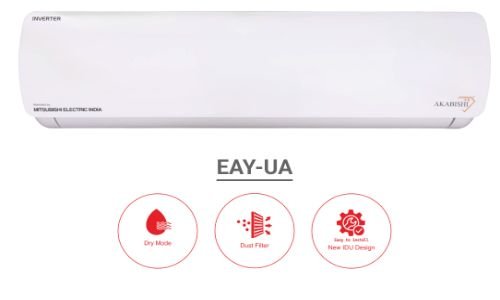

Indoor unit |
|
EAY-UA13VG-AB1-KT |
EAY-UA19VG-AB1-KT |
EAY-UA22VG-AB1-KT |
| Outdoor unit |
|
EBY-UA13VG-AB1-KT |
EBY-UA19VG-AB1-KT |
EBY-UA22VG-AB1-KT |
| Cooling Capacity |
Rated (Min-Max) |
Watt |
3277 (1725-3450) |
5400 (2700-5670) |
6100 (3050-6405) |
| Star Rating |
|
5 Star |
5 Star |
5 Star |
| Energy Efficiency |
ISEER |
|
5.75 |
5.61 |
5.62 |
| Power Input |
Rated (Min-Max) |
Watt |
735 (287-772) |
1200 (454-1260) |
1400 (497-1470) |
| Air Volume |
Indoor unit (Silent-Lo-Med-Hi-Turbo) |
CFM |
400-427-497-551-725 |
497-551-647-812 |
497-550-647-812 |
| Noise Level |
Indoor unit (Lo-Med-Hi-Turbo) |
dBA |
38-42-45-50 |
42-46-50-52 |
42-46-50-52 |
| Refrigerant |
|
R32 |
R32 |
R32 |
| Power supply |
Voltage |
V |
230V |
230V |
230V |
| Power Input Range |
Voltage |
V |
145-285V |
145-285V |
145-285V |
| Operating Current |
Rated |
A |
3.36 |
5.49 |
6.41 |
| Indoor unit |
Net Dimensions (H x W x D) |
mm |
315x960x240 |
315x1070x235 |
315x1070x235 |
|
Net Weight |
kg |
11.5 |
12.5 |
12.5 |
| Outdoor unit |
Net Dimensions (H x W x D) |
mm |
600x840x300 |
675x905x360 |
810x990x455 |
|
Net Weight |
kg |
22.78 |
29.14 |
43.9 |
| Pipe Size |
Diameter Liquid |
mm (inches) |
6.35 (1/4″) |
6.35 (1/4″) |
6.35 (1/4″) |
|
Diameter Gas |
mm (inches) |
9.52 (3/8″) |
12.7 (1/2″) |
15.9 (5/8″) |
|
Additional Refrigerant |
gm |
25/m |
25/m |
25/m |
|
Max.Length |
m |
15 |
15 |
15 |
|
Max.Elevation |
m |
10 |
10 |
10 |
| Ambient Operating Range |
°C |
52° |
52° |
52° |
| Control wiring (Copper) |
ODU to IDU |
Core No. x Sq.mm |
4 Core, 1.5 Sq.mm, |
4 Core, 1.5 Sq.mm, |
4 Core, 1.5 Sq.mm, |
| Power cable (Copper) |
IDU |
Core No. x Sq.mm |
3 Core, 1.5 Sq.mm, |
3 Core, 1.5 Sq.mm, |
3 Core, 1.5 Sq.mm, |
| ODU Breaker Size |
A |
12A |
16A |
25A |
|
|
MRP |
49300 |
61000 |
71500 |
