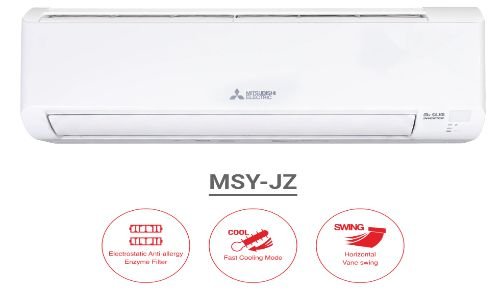

| Model name |
Indoor unit |
|
MSY-JZ13VF |
MSY-JZ18VF |
MSY-JZ22VF |
|
Outdoor unit |
|
MUY-JZ13VF |
MUY-JZ18VF |
MUY-JZ22VF |
| Cooling Capacity |
Rated (Min-Max) |
Watt |
3600 (900-3800) |
5200 (1500-5300) |
6600 (1600-6600) |
| Star Rating |
|
|
3 Star |
3 Star |
3 Star |
| Energy Efficiency |
ISEER |
|
4.3 |
4.3 |
4.3 |
| Power Input |
Rated (Min-Max) |
Watt |
1145 (300-1400) |
1650 (400-2100) |
2100 (400-2100) |
| Air Volume |
Indoor unit(SLo-Lo-Med-Hi-SHi) |
CFM |
167-242-324-371-414 |
282-373-458-566-676 |
278-405-501-532-778 |
| Noise Level |
Indoor unit(SLo-Lo-Med-Hi-SHi) |
dBA |
22-28-36-40-43 |
26-33-40-44-49 |
27-37-41-45-53 |
| Refrigerant |
|
|
R32 |
R32 |
R32 |
| Power supply |
Voltage |
V |
230V |
230V |
230V |
| Power Input Range |
Voltage |
V |
160-264V |
160-264V |
160-264V |
| Operating Current |
Rated (Min-Max) |
A |
5.4 (1.3-7.0) |
7.6 (2.1-9.2) |
9.2 (2.2-9.2) |
| Indoor unit |
Net Dimensions (H x W x D) |
mm |
290x799x233 |
290x999x233 |
290x999x233 |
|
Net Weight |
kg |
9 |
10.4 |
11 |
| Outdoor unit |
Net Dimensions (H x W x D) |
mm |
538x699x249 |
545x780x294 |
545x780x294 |
|
Net Weight |
kg |
21 |
28 |
28 |
| Pipe Size |
Diameter Liquid |
mm (inches) |
6.35 (1/4″) |
6.35 (1/4″) |
6.35 (1/4″) |
|
Diameter Gas |
mm (inches) |
9.52 (3/8″) |
12.7 (1/2″) |
12.7 (1/2″) |
|
Additional Refrigerant |
gm per meter |
10gm per meter |
10gm per meter |
10gm per meter |
|
Max.Length |
m |
20 |
20 |
30 |
|
Max.Elevation |
m |
12 |
12 |
12 |
| Ambient Operating Range |
|
°C |
21°-52° |
21°-52° |
21°-52° |
|
|
|
|
|
|
| Control wiring (Copper) |
ODU to IDU |
Core No. x Sq.mm |
4 core x 1sq.mm |
4 core x 1sq.mm |
4 core x 1sq.mm |
| Power cable (Copper) |
ODU |
Core No. x Sq.mm |
3 Core x 1sq.mm |
3 Core x 1sq.mm |
3 Core x 2.0sq.mm |
| ODU Breaker Size |
|
A |
10 |
10 |
16 |
|
|
MRP |
48900 |
61600 |
70000 |
