| Model name |

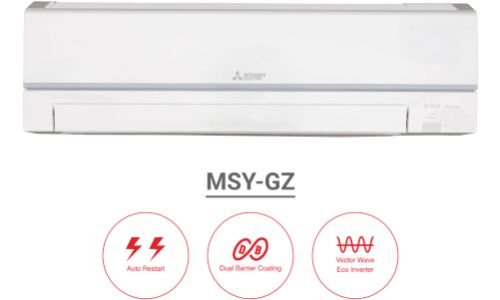

Indoor unit |
|
MSY-GZ13VF |
MSY-GZ18VF |
MSY-GZ22VF |
MSY-GZ26VF |
|
Outdoor unit |
|
MUY-GZ13VF |
MUY-GZ18VF |
MUY-GZ22VF |
MUY-GZ26VF |
| Cooling Capacity |
Rated (Min-Max) |
Watt |
3350 (1400-4500) |
5200 (1800-6000) |
6600 (1800-7200) |
7600 (2100-9200) |
| Star Rating |
|
|
5 Star |
5 Star |
4 Star |
4 Star |
| Energy Efficiency |
ISEER |
|
5.61 |
5.6 |
5 |
5 |
| Power Input |
Rated (Min-Max) |
Watt |
760 (320-2180) |
1140(320-2350) |
1670 (320-2650) |
1900 (430-3780) |
| Air Volume |
Indoor unit(SLo-Lo-Med-Hi-SHi) |
CFM |
121-150-203-271-441 |
290-364-427-505-687 |
323-375-440-538-710 |
314-413-498-576-721 |
| Noise Level |
Indoor unit(SLo-Lo-Med-Hi-SHi) |
dBA |
19-24-31-38-48 |
27-33-38-44-49 |
28-36-41-45-51 |
30-37-42-46-53 |
| Refrigerant |
|
|
R32 |
R32 |
R32 |
R32 |
| Power supply |
Voltage |
V |
230V |
230V |
230V |
230V |
| Power Input Range |
Voltage |
V |
160-264V |
160-264V |
160-264V |
160-264V |
| Operating Current |
Rated (Min-Max) |
A |
3.6 (1.9-9.5) |
5.1 (1.8-10.2) |
7.6 (1.8-11.5) |
8.4 (2.0-16.4) |
| Indoor unit |
Net Dimensions (H x W x D) |
mm |
280x838x234 |
325x1100x261 |
325x1100x261 |
325x1100x261 |
| Net Weight |
kg |
9.8 |
16 |
16 |
16 |
| Outdoor unit |
Net Dimensions (H x W x D) |
mm |
545x780x294 |
714x800x285 |
714x800x285 |
880x840x330 |
| Net Weight |
kg |
28 |
37 |
37 |
51 |
| Pipe Size |
Diameter Liquid |
mm (inches) |
6.35 (1/4″) |
6.35 (1/4″) |
6.35 (1/4″) |
6.35 (1/4″) |
| Diameter Gas |
mm (inches) |
12.7 (1/2″) |
12.7 (1/2″) |
12.7 (1/2″) |
15.88 (5/8″) |
| Additional Refrigerant |
gm per meter |
10gm per meter |
10gm per meter |
10gm per meter |
10gm per meter |
| Max.Length |
m |
20 |
20 |
20 |
30 |
| Max.Elevation |
m |
12 |
12 |
12 |
15 |
| Ambient Operating Range |
|
°C |
21°-52° |
21°-52° |
21°-52° |
21°-52° |
|
|
|
|
|
|
|
| Control wiring (Copper) |
ODU to IDU |
Core No. x Sq.mm |
4 Core x 1Sq.mm |
4 Core x 1Sq.mm |
4 Core x 1Sq.mm |
4 Core x 1Sq.mm |
| Power cable (Copper) |
ODU |
Core No. x Sq.mm |
3 Core x 1sq.mm |
3 Core x 1sq.mm |
3 Core x 2sq.mm |
3 Core x 2.5sq.mm |
| ODU Breaker Size |
|
A |
10 |
10 |
16 |
20 |
|
|
MRP |
58550 |
73000 |
83100 |
106500 |
